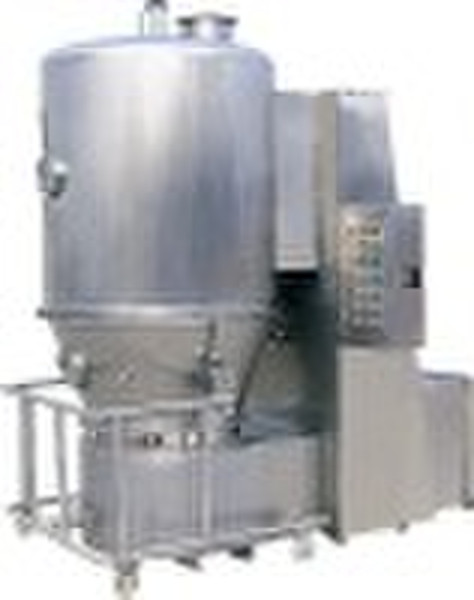

High Efficient Fluidizing Drier

High Efficient Fluidizing DrierMain applicationThis drier is suitable for drying granulated materials with diameter from 0.1 to 6mm in pharmaceutical, food and light industrie.Working principleThe heated and purified air is sucked into the container where it fluidizes through screen plate under the action of stirring and negative pressure. Moisture in the materials will evaporate quickly when the evaporate moisture is discharged through the exhaust pipe The Main technical parameters is for reference. We also produce and design product as per customers' requiremen ModelGFG-200GFG-300GFG-400GFG-500GFG-650Bin capacity(L)200300400500650Production capacity(Kg/time)30-6050-10060-12070-150100-200inlet air temp(ºC)50-10050-10050-10050-10050-100Blower power(kw)111518.52230Steirring power(kw)1.11.51.51.51.5Steam consumption(kg/h)1440170210240280Compressed-air consumption(m3/h)0.60.60.60.90.9overall dimensions(mm)2800x1350x27002900x1450x27003100x1650x29003100x1650x30003200x1750x3100
